Abyss Slide AB-01 Fiberglass Water Slide with 4-Person Clover Raft and 18m Diameter Horn Body from 15m Platform

1 set
MOQ
Negotiable
Price
Abyss Slide AB-01 Fiberglass Water Slide with 4-Person Clover Raft and 18m Diameter Horn Body from 15m Platform
Features Gallery Product Description Request A Quote
Features
Specifications
Ride Type: Body Slide / 2-person Raft (configurable)
Slide Count: 2-4 Intertwined Spiral Slides
Fiberglass Thickness: ≥6mm
Fiber Content: 60%
Structure Type: Spherical / Geodesic-dome Slide Tower
Platform Height: 15 M
Highlight:

Geodesic-dome Water Park Slide

,

High-speed Spherical Slide Tower

,

Customizable Fiberglass Water Slide
Basic Infomation
Place of Origin: Guangzhou, China
Brand Name: Vison Waterparks
Certification: GB/T 18168, GB8408, CE, ISO 9001:2015, SGS audited
Model Number: AB-01
Payment & Shipping Terms
Packaging Details: Standard export packaging (wooden case + container)
Delivery Time: 45-75 days
Supply Ability: 50 sets/year
Product Description
Abyss Slide | AB-01 Water Park Spherical Slide Tower Manufacturer Since 1994
Product Overview

The Abyss Slide is a flagship water attraction that combines an enclosed spiral section, a giant horn funnel, and a splash-pool exit. Riders on a 4-person clover raft launch from a 15-meter platform, accelerate through the enclosed spiral, then plunge into the massive horn body—swirling upward and backward in a powerful centrifugal surge before gliding out into the landing pool. This innovative design delivers a triple sensation of acceleration, spin, and weightlessness in one ride, making it the centerpiece of any large water park.

Key Features
  • Spiral + giant horn combination: one ride, three thrills
  • 4-person clover raft riding for families and groups
  • Giant horn body up to 18m in diameter for strong centrifugal force
  • Enclosed spiral section for high-speed acceleration
  • Splash-pool exit for a smooth, safe finish
Technical Specifications
Platform Height 15 m
Enclosed Spiral Section Diameter 2.7 m, Length 65 m
Horn Body Min diameter 2.7 m, Max diameter 18 m
Slide Exit Piece Inner width 4.0 m, Length 7.5 m
Slide Style Splash-pool type
Riding Posture 4-person clover raft
Materials & Craftsmanship

The FRP parts use marine-grade Lianlisi gelcoat, Lianlisi resin and alkali-free fiberglass cloth for superior weather resistance, strength and long-lasting color. FRP thickness: top cover 6mm, slide channel 10mm, flange 12mm. Steel columns, arms and keels are hot-dip galvanized for corrosion protection.

Safety Design
  • Enclosed spiral with controlled descent speed
  • Ample buffering inside the horn body
  • Anti-slip landing pool with a wide exit piece (inner width 4.0 m)
  • Rounded edges and smooth interior seams
  • Compliant with GB 8408 / GB/T 18168, CE & ISO 9001 certified
Applications

Large water parks, theme parks, resorts and leisure complexes seeking a signature high-thrill flagship attraction.

Service & Delivery
  • Turnkey service: design, manufacturing, installation, training, after-sales
  • Delivery: 60-90 days depending on configuration
  • Warranty: 2 years with on-site installation support

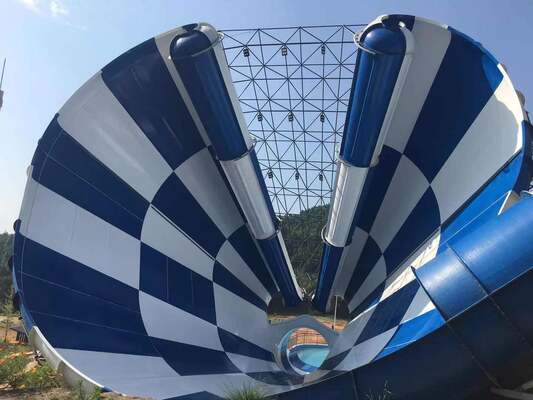

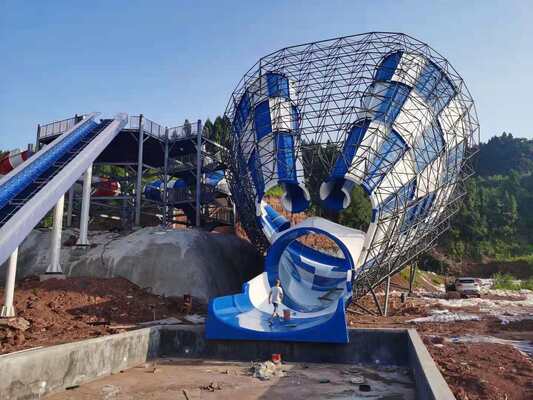

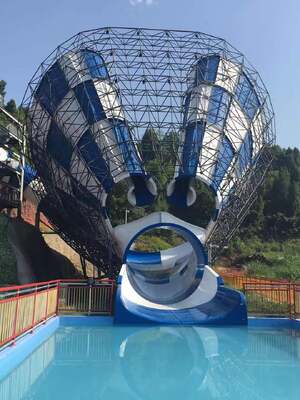

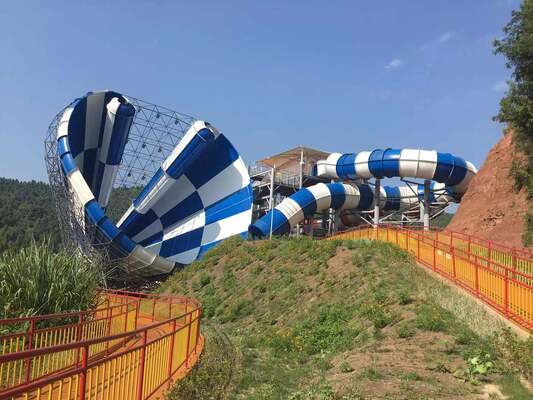

Abyss Slide water attraction showing spiral section and horn funnel Close-up view of Abyss Slide construction and materials
Why Choose Us
  • Since 1994, 30+ years of water park equipment manufacturing
  • No.1 market share in China for water slides & wave machines
  • 1000+ projects delivered in 35+ countries
  • Exclusive provider for Chimelong Water Park & Zhuhai Dream Water City
  • 30,000㎡ + 30,000㎡ factories, SGS & Intertek audited
Vison Water Parks manufacturing facility and quality control processes
