Kids U-Turn Water Slide with Compact Footprint and Double Raft for Family Fun | Hot-Dip Galvanized Steel Structure

Kids U-Turn Water Slide — The Thrill the Whole Family Can Share

Product Overview

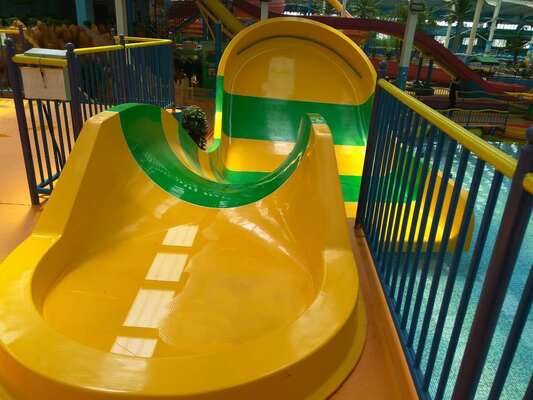

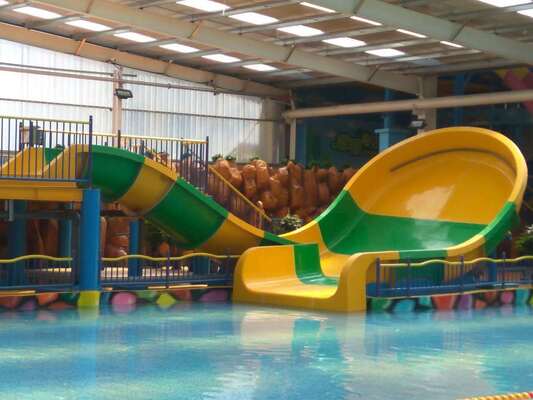

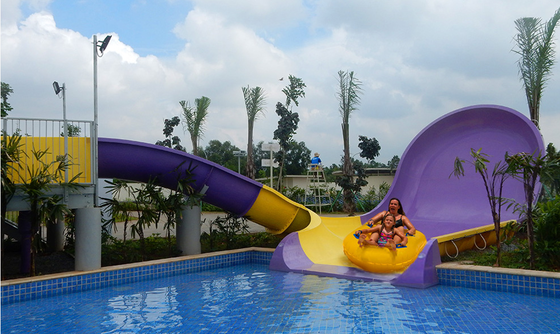

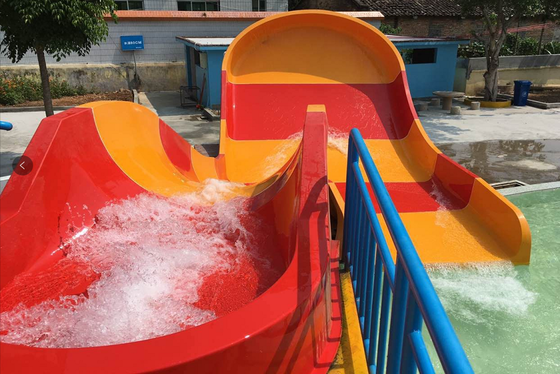

The Kids U-Turn Slide (Small U-Turn Slide) is a compact half-pipe water slide designed for children and families. Two riders share a double raft, launch from the start platform, shoot up the curved wall for a weightless moment, then swoop back down for a burst of excitement and laughter. It delivers big-slide thrills in a small footprint, making it a high-value attraction for family pools, resorts, community water parks, and hotel spa centers.

Key Features

• Family Fun Together — double raft lets parents and kids ride side by side
• Compact Footprint — only 1.9 m start platform height, no tall tower required, ideal for small sites and renovations
• Thrill with Safety — curved wall delivers weightless fun while high side walls keep riders safely in the flume
• Smooth & Durable — hand-laid fiberglass flume with a glossy, smooth transition for effortless water flow
• Easy Installation — modular pre-fabricated components for fast on-site assembly and short construction time

Technical Specifications

Start Platform Height: 1.9 m
Ride Style: Double raft (2 riders together)
Flume Width: 1.5 – 4 m
Total Power: 11 kW
Water Pump: 11 kW (corrosion-resistant, low noise)
Hair & Lint Strainer: LQ/MF3, 304 stainless steel
Control System: Chint or equivalent, with undervoltage / overload / leakage protection
Slide Body: Fiberglass (FRP)
Support Structure: Hot-dip galvanized steel columns, arms, and keel

Materials & Craftsmanship

• Fiberglass Flume — built with Liansi gelcoat and resin, hand-laid with marine-grade alkali-free fiberglass cloth and mat, plus UV-resistant anti-aging additives for vivid color and long-lasting durability
• Steel Structure — columns, arms, and keel are hot-dip galvanized for rust protection, with support seats and standard embedded anchor parts (incl. anchor bolts)
• Connectors — Sika sealant, sealing strips, and stainless-steel bolts for strong, leak-proof joints

Safety Design

• High side walls prevent riders from leaving the flume
• Buffer zone at the exit for a smooth transition into the landing pool
• Safety railings at the platform and slide entrance for orderly boarding
• Control system with triple protection: undervoltage, overload, and leakage
• Complies with GB/T 18168 and GB8408, certified CE, ISO 9001, and audited by SGS

Applications

• Family pools / kids' splash zones
• Resorts, hotels, and hot-spring clubs
• Community water parks and themed-park kids' areas
• Park renovations and small water park upgrades

Service & Delivery

• Turnkey Service — investment planning, design, manufacturing, installation, and after-sale in one stop
• Delivery Time — 45–75 days (depending on order size)
• Customization — colors, themes, and dimensions tailored to your needs

Why Choose Us

• Turnkey service, fast delivery, and one-stop after-sale
• Since 1994, over 30 years rich experience in water park design and manufacturing
• Export countries: Russia, Canada, Australia, Indonesia, Egypt, Chile, Philippines, Bangladesh, Kyrgyzstan, Papua New Guinea, and South Africa
• Factory audited by SGS & Intertek
• Factory area 30,000 m², with another 30,000 m² manufacturing base under construction
